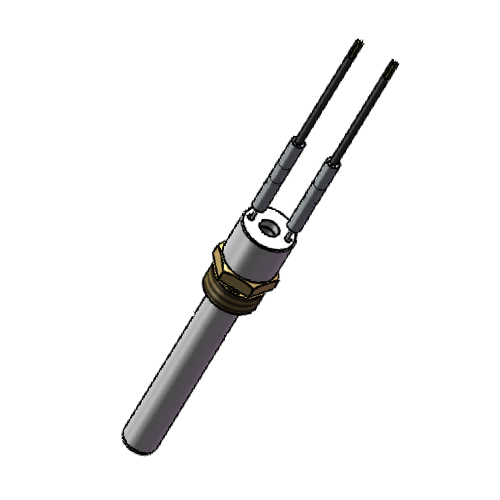

HF1308 Series Ceramic Igniter

Item No.: HF1308 Series

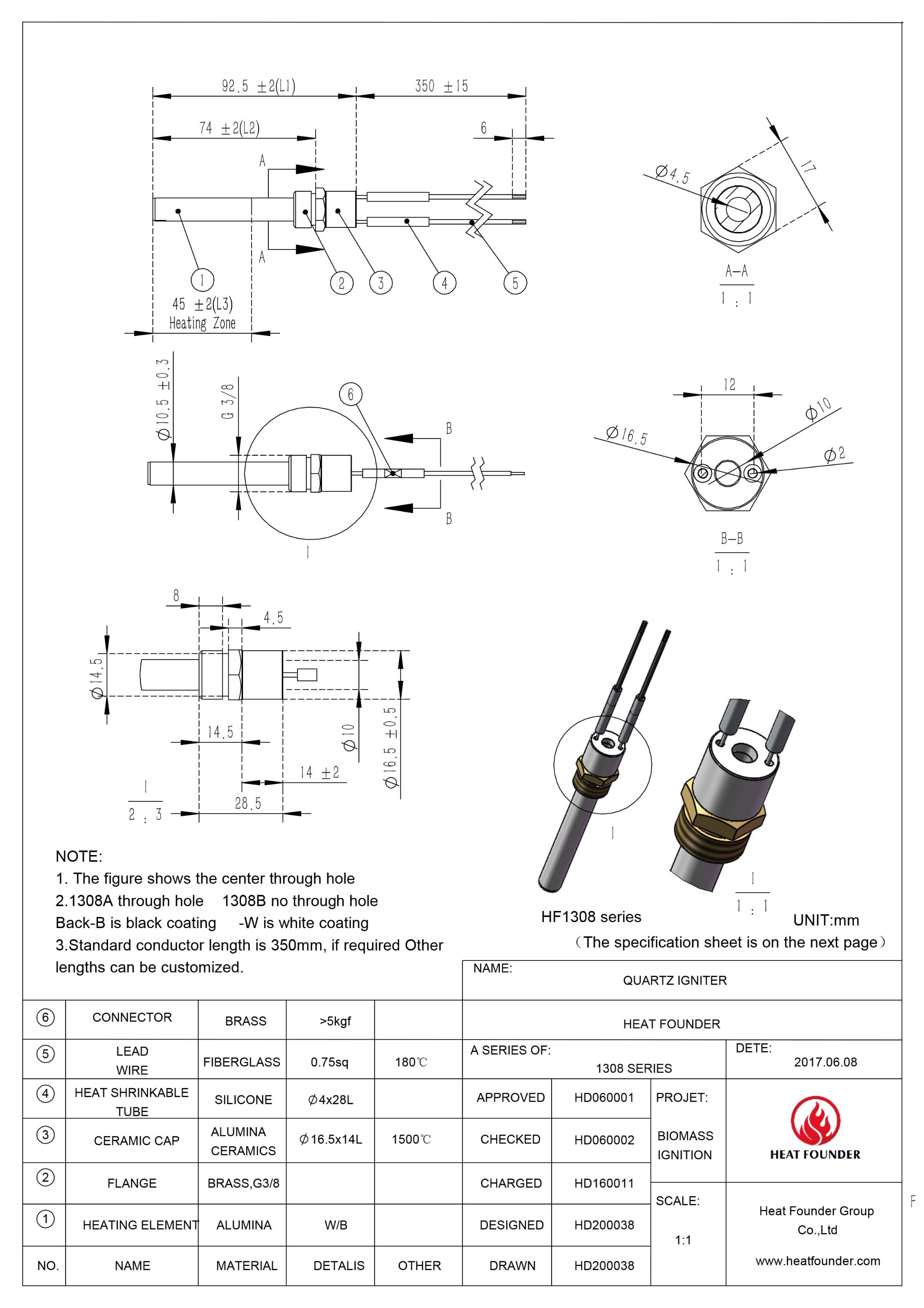

Description DRAWING
Name Ceramic Igniter
Model HF1308 Series
Material 96% alumina
H.S. Code 8516800000
Voltage 120V 230V
Power 150W 200W 250W
Flange Ceramic/Stainless Steel/copper/customized
Temp Range 30~1050 °C/86~1922
Ignition Time 40-60 seconds
Samples fee Please contact for confirmation.
Packing carton
Lead time 5 working days for samples; 12 working days for mass production
QC Strict quality control under SGS, ISO9001 and Intertek.
Certification BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner Pellet burners
Gas burner/stove Pellet boiler
Ignition of gas or oil Pellet burner
Pellet Stove Pellet BBQ grill
Stove fireplace Medical-Scientific
Wood pellet stove Heaters-Agricultural
Particle Burning Spark Igniters
Fuel cells EV heating
Gas appliances Glow plug
Petroleum equipment Cabin heater
Soldering iron Gas sensor
gas furnaces, DPF/Catalyst
gas boiler


Model Number Voltage(V) Rating power(W) OD.tube(mm) Total length L1(MM) Length under flange Width L2(MM) Length of Hot Zone L3(MM) Max.OD.flange(MM)
HF1308A01-W 230 250 10.5 94 74 45 G3/8
HF1308B01-W 230 250 10.5 94 74 45 G3/8
HF1308A01-B 230 250 10.5 94 74 45 G3/8
HF1308B01-B 230 250 10.5 94 74 45 G3/8
HF1308A02-W 120 200 10.5 94 74 45 G3/8
HF1308B02-W 120 200 10.5 94 74 45 G3/8
HF1308A02-B 120 200 10.5 94 74 45 G3/8
HF1308B02-B 120 200 10.5 94 74 45 G3/8
HF1308A03-W 230 150 10.5 94 74 45 G3/8
HF1308B03-W 230 150 10.5 94 74 45 G3/8
HF1308A03-B 230 150 10.5 94 74 45 G3/8
HF1308B03-B 230 150 10.5 94 74 45 G3/8
