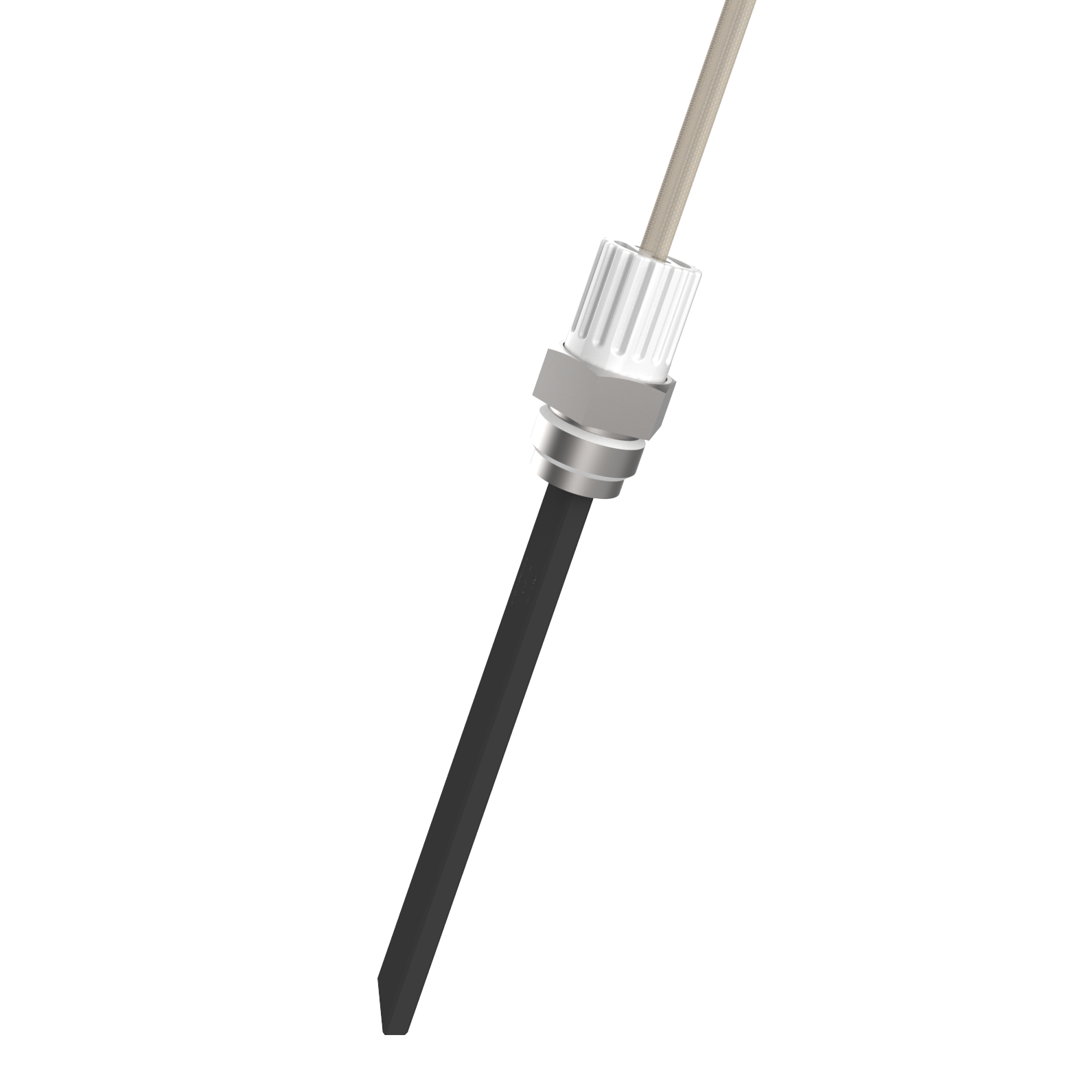

HF1205 Series Silicon Nitride Igniter

Item No.: HF1205 Series
Sialon Group provides the best quality silicon nitride Igniter, ceramic igniter for biomass pellet stove, and BBQ grill applications.

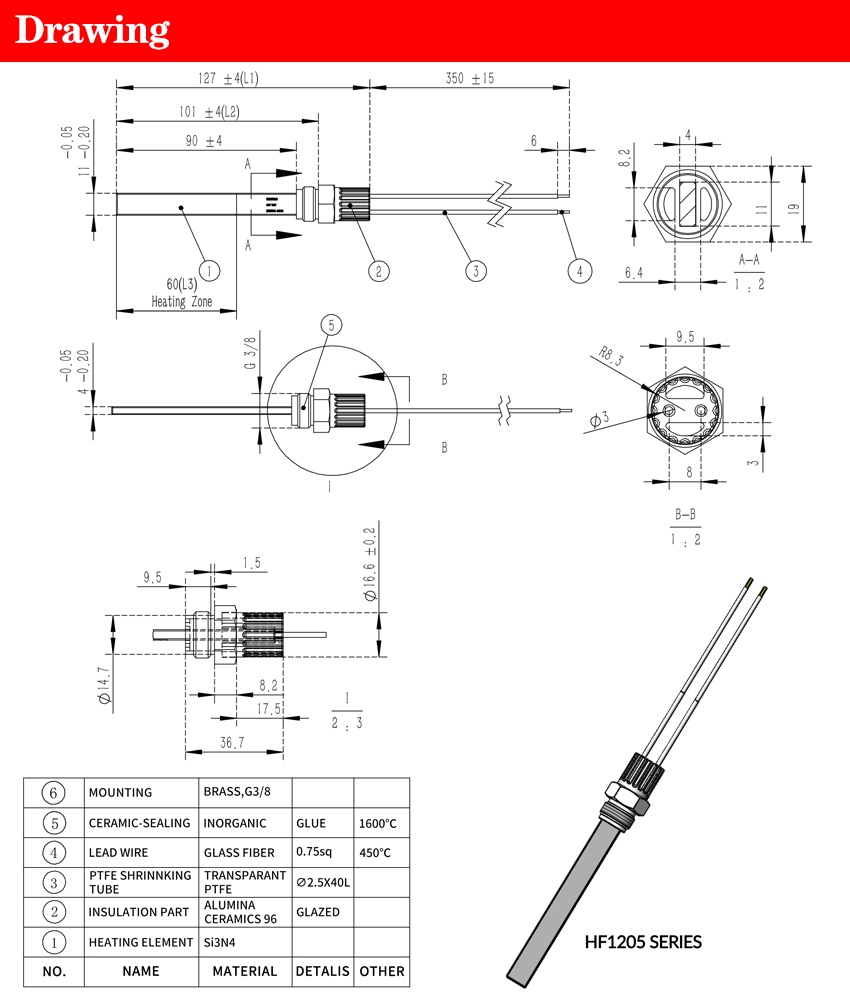

Description DRAWING
Name Silicon Nitride Igniter
Model HF1205 Series
Material Silicon Nitride (Si3N4)
H.S. Code 8516800000
Color black
Voltage 24V 120V 230V
Power 300W 400W
Flange Ceramic/Stainless Steel/copper/customized
Temp Range 1100~1300 °C/2012~2372℉
Ignition Time up to 1000°c in 10 seconds
Samples fee Please contact for confirmation.
Packing carton
Lead time 5 working days for samples; 12 working days for mass production
QC Strict quality control under SGS, ISO9001 and Intertek.
Certification BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner Pellet burners
Gas burner/stove Pellet boiler
Ignition of gas or oil Pellet burner
Pellet Stove Pellet BBQ grill
Stove fireplace Medical-Scientific
Wood pellet stove Heaters-Agricultural
Particle Burning Spark Igniters
Fuel cells EV heating
Gas appliances Glow plug
Petroleum equipment Cabin heater
Soldering iron Gas sensor
gas furnaces, DPF/Catalyst
gas boiler
Rapid heating: Heating faster. up to 1000°c in 10 seconds
Range of temperature: 1100~1300 °C/2012~2372℉

Small size / High watt density: High-watt density discharge allow high thermak efficiency.
Long working life:10 years possible,90,000 hours
High insulation
Direct water and kerosene heating
Vacuum environment
Oxidation and chemical resistance
Output switching
Temperature sensing










Model Number Voltage(V) Rating power(W) Width(MM) Total length Width(MM) Length under flange(MM) Length of Hot Zone(MM) Max.OD.flange(MM)
HF1205001 230 300 10.8 127 101 60 G3/8
HF1205002 230 400 10.8 127 101 60 G3/8
HF1205003 120 400 10.8 127 101 60 G3/8
HF1205004 24 400 10.8 127 101 60 G3/8
